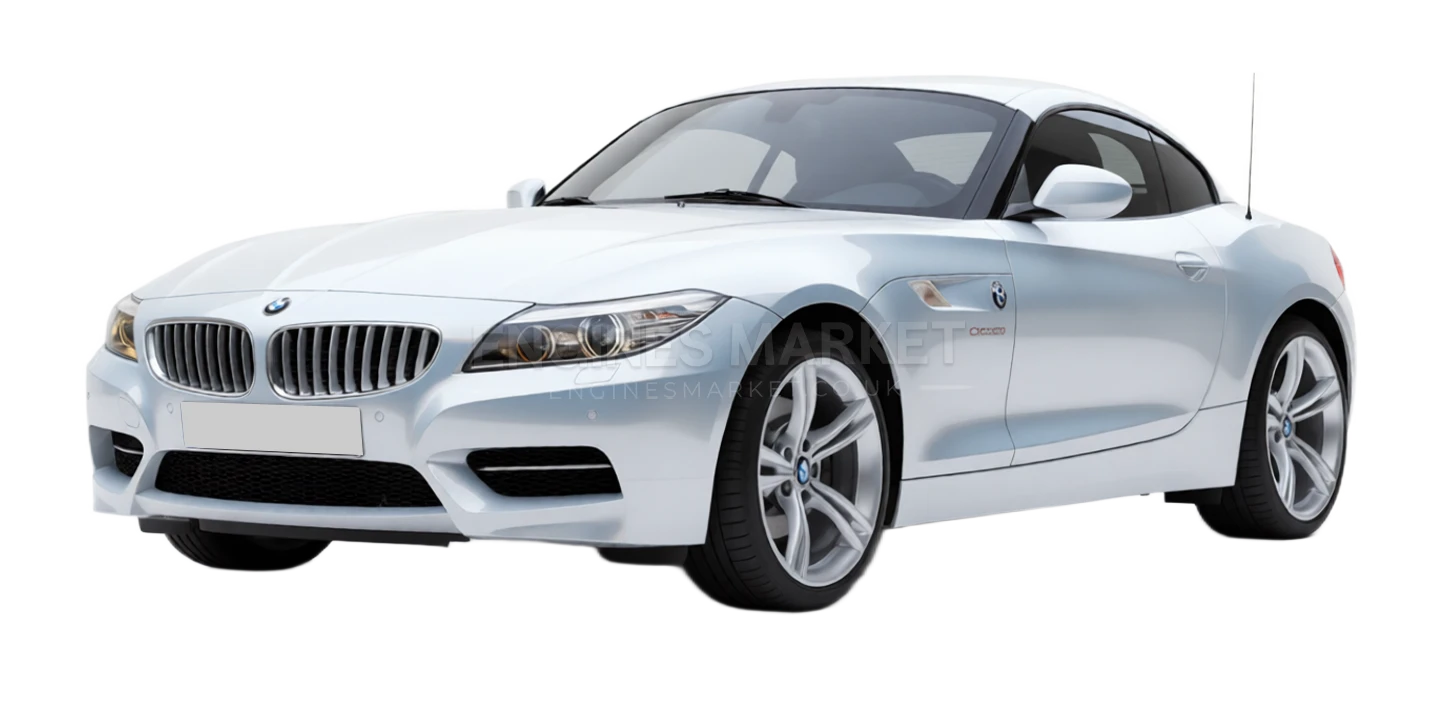

BMW Z Series Engine ReplacementCompare Prices & Save

Key points

• • Used M54B30 engines typically cost £1,495-£2,495 supply-only from UK breakers
• • Reconditioned N52B30 units with 12-month warranty range £2,800-£4,200 fitted

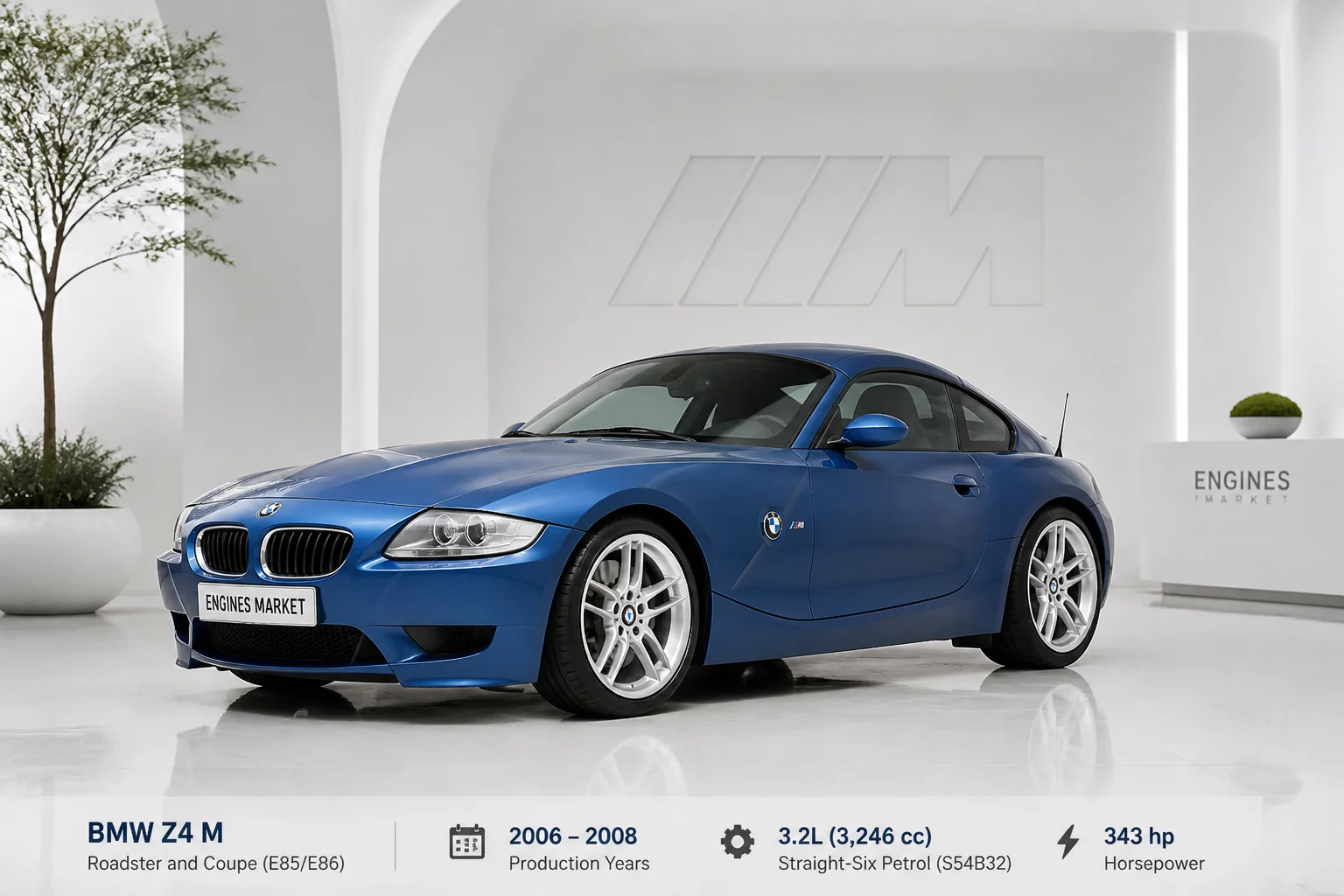

• • S54B32 Z3M/Z4M engines command £8,000-£12,000 due to specialist rebuild requirements
• • Labour for Z4 engine swap adds £800-£1,500 depending on garage rates and accessibility

Key points

• • N52B30 features Valvetronic and magnesium-aluminium construction for improved efficiency
• • Ticking lifters often indicate hydraulic lifter wear or low oil pressure issues
• • Eccentric shaft sensor failure causes rough idle and drivetrain malfunction warnings
• • Regular oil changes with 5W-30 LL-01 specification fluid extend N52 lifespan significantly

Key points

• • M54B30 CCV failure causes oil to be drawn into intake, burning as blue smoke
• • Valve stem seals harden with age, allowing oil leakage past valve guides on overrun
• • Replacing CCV system costs £300-£600; valve stem seals require cylinder head access
• • Ignoring oil consumption risks catalytic converter clogging and costly secondary damage

Key points

• • S54B32 rod bearings wear prematurely on high-revving M-engines, especially with track use
• • Early diagnosis via oil analysis or bearing clearance check can prevent crankshaft damage
• • Specialist rebuilders offer upgraded bearing kits with extended service intervals
• • Undamaged S54 blocks are rare; replacement engines cost £8,000-£12,000 fully fitted

Key points

• • N20B20 timing chain guides use brittle plastic that fragments under heat and age
• • Early warning signs include rattling noise at cold start or check engine light for cam correlation
• • Replacement requires engine removal; labour costs often exceed used engine purchase price
• • Later N20 units (post-2015) received revised guide design but risk remains on high-mileage examples

Key points

• • M54B30 (2000-2006) benefits from simple design and widespread breaker supply
• • N52B30 (2006-2016) adds Valvetronic efficiency while retaining inline-six smoothness
• • Avoid high-mileage N54 twin-turbo units without documented HPFP and injector service history
• • S54 M-engines are reliable only with meticulous maintenance and preventative bearing replacement

Key points

• • M54/N52 engines share robust bottom-end design capable of high mileage with care
• • Cooling system components (expansion tank, water pump, thermostat) should be renewed preventatively at 80k miles
• • Using BMW LL-01 approved 5W-30 oil and changing every 10k miles protects Valvetronic components
• • CCV system inspection at 100k miles prevents oil consumption escalating to catalytic damage

Key points

• • Used M54B30 engines from breakers start at £1,495 supply-only, keeping total rebuild under £3,500
• • Z3/Z4 chassis components are robust; engine failure is often the only major repair needed
• • Reconditioned units with 12-month warranty provide peace of mind versus unknown breaker engines
• • Specialist fitting ensures correct coding, cooling system renewal and post-installation diagnostics

Key points

• • Breaker engines should include compression test results and cold-start video for verification
• • Reconditioned M54/N52 units replace wear items: CCV, gaskets, water pump, thermostat
• • Warranty coverage on reconditioned engines protects against premature failure post-installation
• • Supply-and-fit packages from specialists often include cooling system renewal as standard

Key points

• • LL-01 specification ensures compatibility with Valvetronic hydraulic components and seals
• • 5W-30 viscosity balances cold-start protection with high-temperature film strength
• • Using non-approved oils risks Valvetronic motor wear and CCV system clogging
• • Oil capacity is 6.5 litres for M54B30, 6.9 litres for N52B30 including filter change
